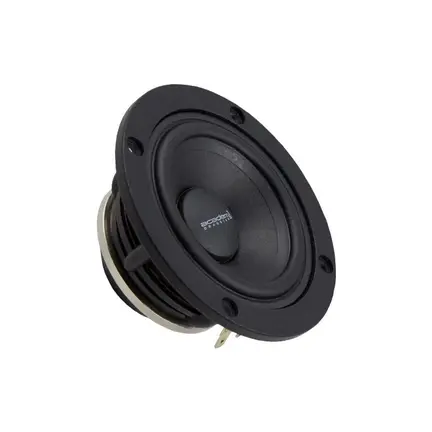

Dragster Audio Art AF-3 Academy

1.507,00 kr.
Varenummer: AF-3 Academy

Dragster Audio Art AF-3 Academy is a 3" full range driver from the high-end series "Academy". All Academy components are made with the highest quality parts. The AF-3 Academy has a die-cast aluminum basket, neodymium magnet and a fiber-free paper diaphragm for a very low moving mass. This made it possible to achieve a wide frequency response up to 20kHz and a sensitivity of over 90dB.

Main features:

  • 3" (8cm) full range driver
  • Power 20W RMS
  • Power 40W MAX
  • Neodymium magnet
  • Frequency response 190Hz-20KHz
  • Emphasis 90.3dB
  • Impedance 4 Ohm

Highlights:

  • Neodymium magnet full range loudspeaker
  • Narrow mounting diameter, suitable for mounting in small enclosures,
  • FEM simulation of the motor structure ensures low distortion and high efficiency of the motor
  • Fiber-free paper diaphragm, for natural sound
  • 1.0" voice coil with CCAW wire, for high efficiency

Dimensions:

  • Outer diameter: 98mm
  • Mounting diameter: 77mm
  • Installation depth: 45mm
