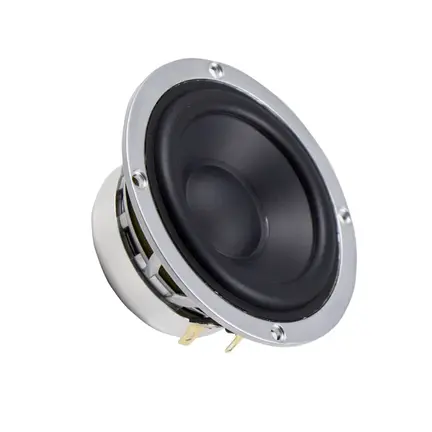

Dragster Audio Art AM-3SQ Academy

1.156,00 kr.
Varenummer: AM-3SQ Academy

Dragster Audio Art AM-3SQ Academy is a 3" midrange driver from the high-end series "Academy". All Academy components are equipped with the highest quality components. The AM-3SQ Academy has an aluminum die-cast basket, neodymium magnet and a fiber-free paper cone for a very low moving mass. This made it possible to achieve a wide frequency response up to 20kHz and a sensitivity of over 85dB.

Main features:

  • 3" (8cm) midrange driver
  • Power 50W RMS
  • Power 100W MAX
  • Frequency response: 169-20000 Hz
  • Impedance: 4 Ohm

    Highlights:

    • Cast aluminum basket with pearl anodize finish
    • Two-piece aluminum grills included
    • High quality CNC machined magnetic cover

    Technical features:

    • Voice coil diameter : 1.00"
    • Resistance(Re) : 3.6 Ohm
    • Resonant frequency(Fs) : 169 Hz
    • Mechanical Q factor(Qms) : 7.54
    • Electrical quality factor(Qes) : 0.80
    • Total Q-factor(Qts) : 0.73
    • Equivalent air volume Vas : 0.4L
    • Mechanical mass(Mms) : 3.2 g

    Dimensions:

    • Outer diameter: 98mm
    • Mounting diameter: 77mm
    • Installation depth: 45mm
