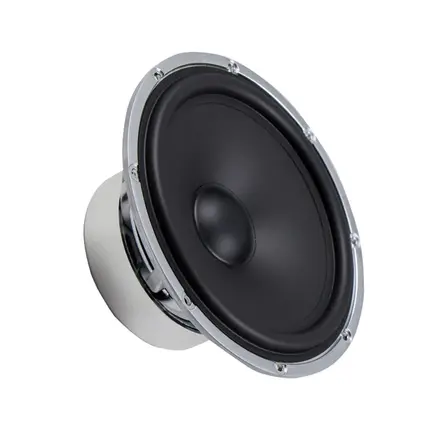

Dragster Audio Art AMW-65SQ Academy

2.224,00 kr.
Varenummer: AMW-65SQ Academy

Dragster Audio Art AMW-65SQ Academy is a 6.5" (16.5cm) woofer from the high-end series "Academy". All Academy components are equipped with the highest quality components. The AMW-65SQ Academy features a die-cast aluminum basket, neodymium magnet and laminated paper cone for very low moving mass with high stiffness.

Main Features:

  • 6.5" (16.5cm) bass-midrange driver
  • Power 80W RMS
  • Power 150W MAX
  • CNC hexagonal grille with aluminum rings included
  • Impedance 4 Ohm
  • Sensitivity 89dB

Highlights:

  • Specially cast aluminum basket with pearl anodize finish.
  • Laminated paper cone with butyl rubber surround
  • Two-piece aluminum grille
  • High quality CNC magnet cover

Technical features:

  • Frequency response : 62-8kHz
  • Efficiency 1W/1M : 89dB
  • Membraine material : paper
  • Voice coil diameter : 1.20"
  • Resistance(Re) : 3.6 Ohm
  • Resonant frequency(Fs) : 62 Hz
  • Mechanical Q factor(Qms) : 3.61
  • Electrical quality factor(Qes) : 0.66
  • Total Q-factor(Qts) : 0.56
  • Equivalent air volume Vas : 14.6L
  • Mechanical mass(Mms) : 12.0 g

Dimensions:

  • Outer diameter: 165mm
  • Mounting diameter: 142mm
  • Installation depth: 68,5mm
