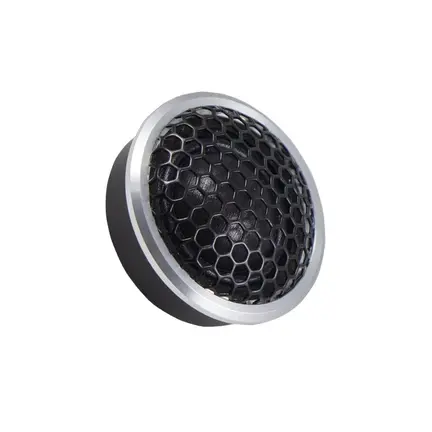

Dragster Audio Art ATW-28SQ Academy

The Dragster Audio Art ATW-28SQ Academy tweeter is designed for the highest sonic demands. The large silk dome with 28mm diameter provides a high sensitivity of 88dB, as well as a wide frequency response from 1750Hz.

Main Features:

• Dome tweeter with 28mm silk cone.
• Power 20W RMS
• Power 40W MAX
• Frequency response 1.75KHz-20KHz
• Sensitivity 88dB
• Impedance 4 Ohm
• Aluminum housing with hexagonal grille

Technical features:

• Membraine Material : Silk

• Voice coil diameter : 1.00"

• Resistance(Re) : 3.2 Ohm

• Resonant frequency(Fs) : 1750 Hz

Dimensions:

• Outer diameter: 49.8 mm
• Mounting diameter: 44 mm
• Installation depth: 19mm
