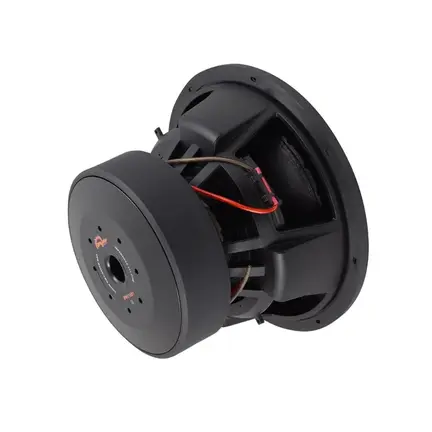

Dragster Audio Art DWX-15 D1

The DWX series subwoofers are the perfect choice for lovers of extreme music reproduction. Either extremely low and/or extremely loud. The combination of a voice coil of 100mm (4"), an extremely powerful and lush magnet of 400 Oz gives the diaphragm an exceptional acceleration of over 70 G! The ribbed bead structure provides a large linear Xmax of 17.5mm per direction!

Main Features:

• 15" (38cm) subwoofer
• Power: 3000W RMS
• Power: 6000W MAX
• Impedance: D1 (1x1Ohm)
• Sensitivity: 89.5dB

Technical features:

• Voice coil diameter (inch) : 4"

• Magnet weight (Oz) : 400 OZ
• Qms : 4.602
• Vas (lt) : 66.70
• Cms (um/N) : 78.02
• Mms (g) : 316.5
• Xmax - per direction (mm) : 17.5
• Bl (Tm) : 8.13

• Qts : 0.387
• Sd (sq.m) : 77.91
• Vd (lt) : 10,8
• Qes : 0.423
• Fs (Hz) : 30.4
• Qts : 0.387

Dimensions:

• Outer diameter: 395 mm

• Mounting diameter: 350mm
• Installation depth : 200 mm
