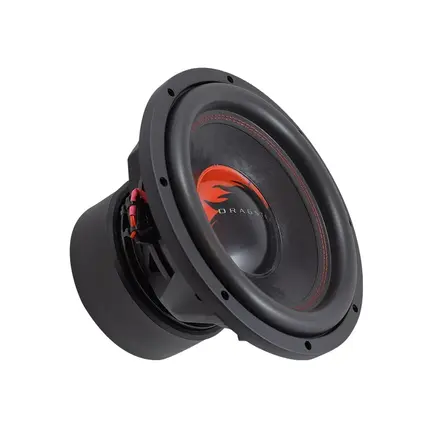

Dragster Audio Art DWZ-12 D2/D4
The Dragster Audio Art DWZ-12 D2/D4 wudern through numerous competition applications over the years further optimized and now has in the current, extremely ausgreiften configuration, a power handling capacity of 1500 watts RMS, as well as a maximum power of 3000 watts. The open basket design ensures excellent ventilation of the drive system and also looks absolutely brute, which makes the DWZ-12 D2/D4 can also be installed inverted excellent!
The Dragster Audio Art DWZ-12 D2/D4 is driven by a 3-inch voice coil and has an XMAX of 16mm per direction!
Main features:
- 12" (30cm) subwoofer
- Power: 1500W RMS
- Power: 3000W MAX
- Impedance Dual 2-Ohm (D2) /Dual 4-Ohm (D4)
Highlights:
- Solid die-cast basket
- Kevlar-reinforced, non-pressed paper cone
- Red stitched ribbed EROM foam surround
- 3" 4-layer copper wire voice coil
- Durable black poly-cotton spider system (3-ply)
- Triple stacked 225Oz strontium magnets
- Direct cooled motor design
- Chrome plated push terminals
- Rubber magnetic sleeve and rubber gasket
Technical features:
Impedance | D2(2x2Ohm) | D4(2x4Ohm) |
Diameter | 12 | 12" |
RMS power / MAX Power(W) | 1500W/3000W | 1500W/3000W |
Impedance (Ohm) | 2+2 | 4+4 |
Voice coil (inch) | 3" | 3” |
Qms | 4,023 | 3.623 |
Vas (lt) | 38,19 |
|
Cms (um/N) | 103,12 | 105.14 |
Mms (g) | 291,9 | 268.9 |
Xmas - per direction (mm) | 16 | 16 |
Bl (Tm) | 24,81 | 34.56 |
Qts | 0,304 | 0.271 |
Sd (sq.m) | 51,07 | 51.07 |
Vd (lt) | 5,8 | 5.8 |
Qes | 0,328 | 0.293 |
Fs (Hz) | 29 | 29.4 |
Qts | 0,304 | 0,304 |
