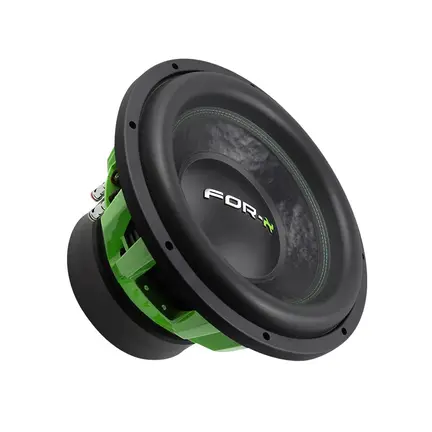

FOR-X X-150 SPL

The FOR-X X-150 SPL was designed for SPL use and can therefore withstand the highest loads. The X-150 SPL has a maximum power handling of 3000 watts and a 6-layer center spider with a high flux ferrite magnet drive, which results in an extreme BL of 24.43 N.A..

Main Features:

• 15" (38cm) SPL Subwoofer
• Power: 1500W RMS
• Power: 3000W MAX
• Dual 2 Ohm impedance
• Sensitivity 88.1dB

Highlights:

• Die-cast aluminum basket
• High flux double ferrite magnet system
• 3.0" voice coil
• 3000 Watt peak power handling

Technical features:

• Frequency response : 40Hz-300Hz
• Cone material : Paper
• Nominal impedance : Dual 2.0 Ohm
• DC Resistance : Re Dual 1.4 Ohm
• Voice coil diameter : 76.5mm
• Voice coil height : 58mm
• Magnet gap height : 20mm
• Max. linear deflection : 19 mm per direction
• Voice coil Coil : Black aluminum
• Voice coil wire : CCAR
• Number of layers : 6
• Magnet system type : High Flux Ferrite
• BL : 24.43N.A
• Suspension compliance : Cms 0.035
• Mechanical Q-factor : Qms 6,35
• Electrical Q-factor : Qes 0.52
• Total Q-factor : Qts 0.48
• Moving mass : Mms 436.4
• Air load( liters): VAS 32,33
• Resonant frequency : Fs 40 Hz
• Effective diaphragm area : SD 804,2cm²

Dimensions:

• Overall diameter : 396mm

• Bolt circle diameter : 373mm

• Mounting diameter : 345mm
• Installation depth : 244mm

• Total height : 282mm

• Net weight : 22Kg
