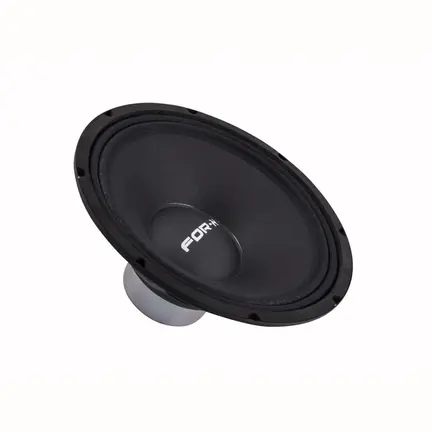

FOR-X XMB-120 NEO

2.830,00 kr.
Varenummer: FOR-X XMB-120 NEO

The FOR-X XMB-120 NEO are designed through and through for competition use. They feature a powerful neodymium drive that not only makes the driver super lightweight, but also allows for an excellent sensitivity of 98.1dB. The XMB-120 NEO are capable of handling 400 watts RMS and 800 watts maximum power.

Main Features:

  • 12" (30cm) neodymium woofer with paper cone.
  • Power: 400W RMS
  • Power:800W MAX
  • Impedance: 4 Ohm
  • Sensitivity: 98.1dB

    Technical features:

    • Frequency response : 52-4000 Hz
    • Cone material : Paper
    • Nominal impedance : 4 Ohm
    • DC resistance : 3.2 Ohm
    • Voice coil diameter : 76.5 mm
    • Voice coil height : 18.5 mm
    • Magnet gap height : 10 mm
    • Max.linear deflection : 4.25 mm per direction
    • Voice coil wire : CCAR
    • Number of layers : 1
    • Magnet system type : Neodymium
    • BL : 13.16 N.A
    • Suspension compliance : Cms 0.202
    • Mechanical Q factor : Qms 4.24
    • Electrical Q-factor : Qes 0.27
    • Total Q-factor : Qts 0.26
    • Moving mass : Mms 45.6
    • Air load( liters) : VAS 80.9 liters
    • Resonant frequency : Fs 52 Hz
    • Effective piston area : SD 530.9 cm²

    Dimensions:

    • Outer diameter : 318mm
    • Installation depth: 144mm
    • Net weight : 3 kg
