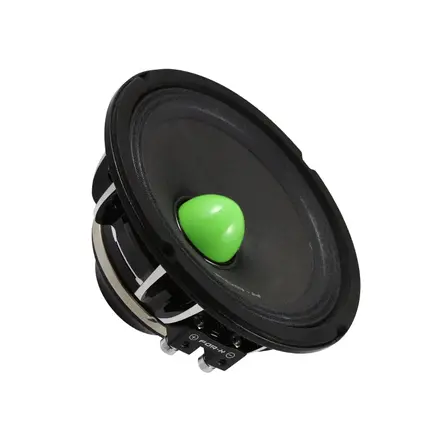

FOR-X XMD-1720NEO

The FOR-X XMD-1720NEO 8" (20cm) Neo midrange drivers have an impedance of 4 ohms and offer the possibility to implement a power of 250W RMS power, as well as 500W MAX power. The 8" (20cm) Neo midrange drivers offer the possibility of afrequency range 94HZ-10kHz.

Highlights:

• 8" (20cm) neo midrange driver

• Impedance 4 Ohm

• 250W RMS POWER

• 500W MAX POWER

• frequency range 94HZ-10kHZ

Technical features:

• Outer diameter: 210mm
• Installation depth: 98mm

• Rated power: 250 watts RMS

• Maximum power: 500 Watt RMS

• Sensitivity 2.83V / 1 M : dB 95dB

• Frequency response : 94-10KHz

• Cone material : Paper

• Net weight : 2.05kg
• Nominal impedance : Z 4 Ohm

• DC resistance : Re 3.2 Ohm

• Voice coil and magnet parameters :

• Voice coil diameter : DIA 61.1mm

• Voice coil height : 10.7mm

• HE Magnet gap height : HE 8mm

• Max. linear deflection : X 1.35

• Voice coil bobbin : Kapton

• Voice coil wire : CCAW

• Number of layers : 2 L

• Magnet system type : Neodymium

• BL Product : BL 9.01


Parameters:

• Suspension compliance : Cms 0.138 mm/N

• Mechanical Q-factor : Qms 4.37

• Electrical Q-factor : Qes 0.48

• Total Q-factor : Qts 0.43

• Moving mass : Mms 20.6Gr

• Equation Cas air volume (liters) : VAS 9.19 liters

• Resonant frequency : Fs 94 Hz

• Effective piston area : SD 213cm²
