FOR-X XMD-82 PRO

2.112,00 kr.
Varenummer: FOR-X XMD-82 PRO

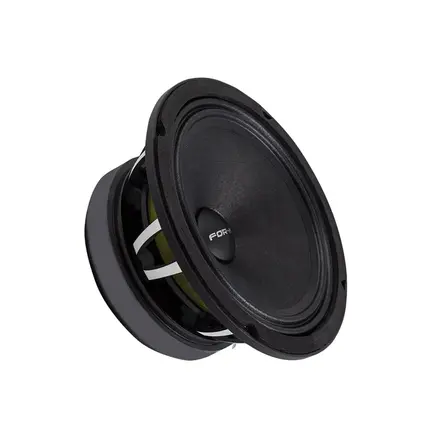

The For-X XMD-82 PRO is an 8" (20cm) woofer from the XMD series, which has been designed for maximum demands. The XMD-82 PRO is driven by a 1.5" voice coil with 200 watts RMS power handling. Due to the ultra light Kapton voice coil former, the super light paper cone and the oversized ferrite magnet, the XMD-82 PRO has an extremely high sensitivity of 97dB!

Main Features:

  • 8" (20cm) bass-midrange driver
  • 1.5" voice coil
  • Power 200W RMS
  • Power400W MAX
  • Sensitivity 97dB
  • Frequency response 101-20K Hz
  • Impedance 4 Ohm

    Technical features:

    • DC resistance : 3.2 Ohm
    • Voice coil diameter : 38.6 mm
    • Voice coil height : 10 mm
    • Magnet gap height : 6 mm
    • Max.linear deflection : 4 mm per direction
    • Voice coil bobbin : Kapton
    • Number of layers : 2
    • Magnet system type : Ferrite
    • Suspension compliance : 0.17 Cms
    • Mechanical Q factor : 3.84 Qms
    • Electrical Q-factor : 0.38 Qes
    • Total Q-factor : 0.35 Qts
    • Moving mass : 14.5g Mms
    • Air load : 10.9 VAS
    • Resonant frequency : 101 Fs
    • Effective diaphragm area : 213.8 cm² SD

    Dimensions:

    • Outer diameter: 210mm
    • Installation depth: 102mm
    • Weight: 4,4kg
