PIONEER TYPE2 AVH/DMH/SPH 2022> TIL CTS Ratbetjenings interface

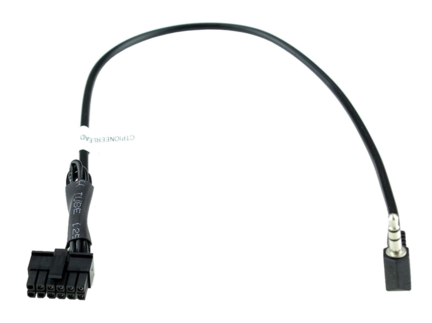

Adapterkabel til CTS (SWC.2) ratbetjeningsinterfaces. Passer kun til nye Pioneer modeller med flad blanksort bagende

connector: 12 Pin Microfit > 3,5mm Jack

SWC radio specific lead ACV SWC interface
SWC radio specific lead Infodapter

Jack ring red wire > BAT43 shottky diode/blocking diode 0,2A with cathode to micro fit plug

Usecase:

Pioneer 3,5mm Jack connector

HU application:

Pioneer units 2021/2022> with flat glossy metallic back panel
