STEG MT 650CII 2 VEJS COMPOSÆT 3 OHM

Power rating: 100W RMS, 2,6 Ohm, 88 dB 1W/1m, Fs = 60Hz - 22kHz
28mm Silk Dome Tweeter with copper cap
Woofer with vented aluminium-cast basket and coated paper cone
38mm Voice Coil Diameter
Twisted pole plates, drilled pole core + air gap
Mounting depth: 74 mm
Grill not included
Technical data
Woofer:
Qms: 9.59
Qes: 0.64
Qts: 0.60
BI: 4.90Tm
Mms: 16.02g
Vas: 11.20l
Cms: 447.75mm/N
Mounting Diameter: 147 MM
Tweeter:
Cone material: Double composite membrane
Frequency Range: 1000-22000 Hz
Mounting Depth: 14 mm
Mounting Diameter:44mm

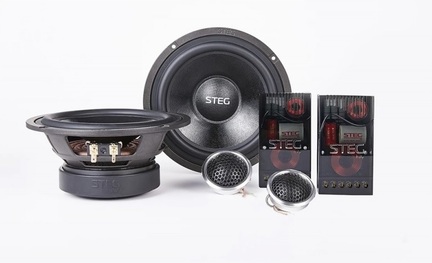

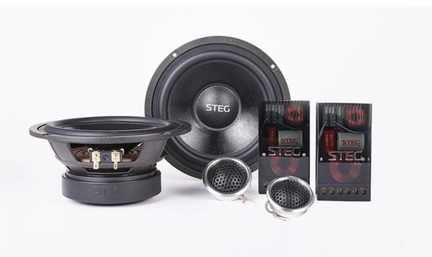

Scope of delivery
2x Woofer
2x Tweeter
2x Crossover
Manufacturer
STEG
Product Type
Compo system
Speaker Size
16,5 cm
Design
2-Way
Power Rating (RMS)
100W
Mounting depth
74mm
Impedance
2,6Ω
Color
black
