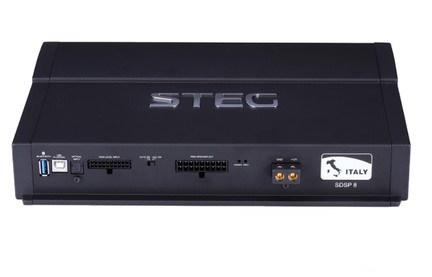

STEG SDSP-8 FORSTÆRKER MED DSP 8 KANAL

RMS Power Rating at 14.4V, < 1% THD
8x 65W (4Ω)
8x 90W (2Ω)
DSP 32Bit, 295 MHz, 48 kHz sampling rate
2 rca outputs to drive another external amplifier
Powerful software to set all DSP functions in a single page
Start-Stop ready
1x Stereo RCA Input (A/D BurrBrown)
Power & Protection Indicators
Compact device
Optional: DRC controller, operate via Bluetooth
Dimensions
28,0 x 21,0 x 5,75 cm
Technical data
Inputs:
2x RCA / AUX in
6x Highlevel speaker
1x Optical SPDIF
1x Remote
Input Sensitivity:
RCA 400mv 1x COXA
Highlevel 5-10 V or 10-20 V
Outputs:
8x Speaker
2x RCA
Remote
Output Voltage RCA: >5V RMS
DSP resolution: 32 Bit
DSP power: 295 MHz (1,2 billion MAC operations/s)
Sampling rate: 48 kHz
Signal converters:
A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input: 105 dB (A-weighted)
Signal-to-noise ratio analog input: 100 dB (A-weighted)
Damping factor: >70
Input impedance RCA: 22 kOhms
Input impedance highlevel: 200 Ohms
Additional features: USB Bluetooth, DRC controller
Scope of delivery
STEG DSP amplifier
Manufacturer
STEG
Product Type
DSP amplifier
Channels
8 Channel
Power Rating (RMS)
800W
Frequency Response
20Hz - 22kHz
THD @ Rated Power
0.015%
Tested voltage
9-15V (max. 5sec. down to 6 V)
