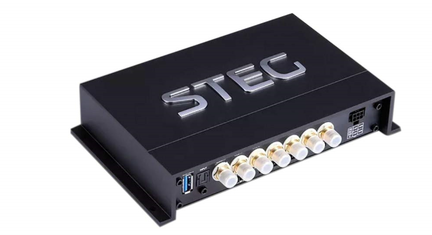

STEG SDSP68 6 IN 8 UD DIGITAL LYDPROCESSOR

3.368,00 kr.
Varenummer: 112214005

6-CH Low Level & 6-CH High Level inputs with auto turn on
32Bit 192kHz
8-channel 5Volt low level outputs (D/A BurrBrown)
Time-delay with steps of 0,02msec, insertion in cm or msec (all settings in real-time)
External control with display for presets and main settings
USB connector for PC adjustments
Low-level or high-level input with auto-sense (high-level only)
Aux input with auto-fading for stereo signal, speakerphone and navigation
Start-Stop ready
5 presets
Mixer matrix to mix and match input/output channels at will
SUM function (in input) for active OEM systems/sources
Dimensions
185 x 120 x 43 mm (including fixing feet)
Technical data
Input Mode: Low Level (LL) / High Level (HL)
Input impedance: > 15KOhm (LL) / 47ohm (HL)
Input sensitivity: 0.27 V to 8.5 (low level) / 5 V to 22 (high level)
Max. Output signal: 8Vrms
THD distortion: <0.002% @ 1Vrms
Frequency response: 10Hz ÷ 22KHz (within -0,3dB)
Channel separation: >88dB (@ 1KHz)
Supply voltages: 9-15 Volts (max. 5 sec. down to 6 Volts)
Current consumption: 0.4A @ 12V
Ground isolation vs. car body: 1KOhm
Autosense: two operative modes (yes, HL only)
Remote output: 50mA max.
Communication peripherals: remote controller
USB Bluetooth, to send music from the devices and to control main functions through its application (Apple / Android):
Master volume
Subwoofer volume
No. 8 preset
Input
Mute
Optical board: S/PDIF
Scope of delivery
DSP
Power supply cable
USB cable (5m)
Remote controller high level input
4x screws
CD ROM with DSP software and test tracks
